Yamaha AS501 Mk2 Integrated Amplifier Black

Bringing you a combined power of 240W, this amplifier can delivery clear and strong sound. High end technology to bring you the best in audio performance is wrapped in an elegant and professional looking shell.

• ToP-ART (Total Purity Audio Reproduction Technology) and high quality parts
• – I/O (input to output) Direct Symmetrical Design
• – ART (Anti-Resolution and Tough) Base
• – Custom-made power transformer / 12,000uF block capacitors / Aluminum-extruded heat sinks
• 120W x 2 (max), 85W x 2 (RMS) high power output
• Pure Direct Mode for Greater Sound Purity
• Continuous Variable Loudness Control

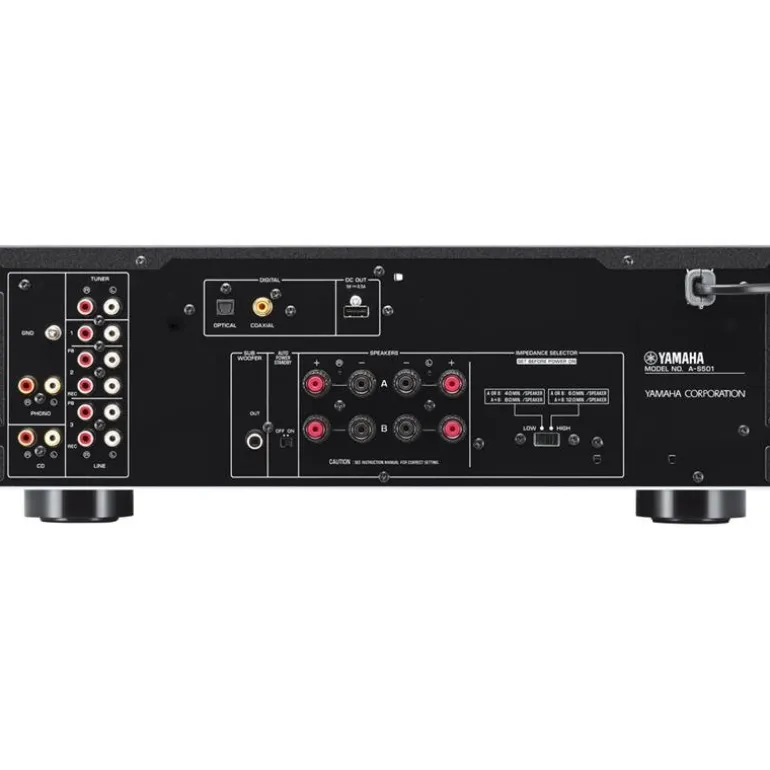

• Gold-plated speaker terminals and RCA (CD, Phono) and coaxial terminals
• Digital audio inputs for TV or Blu-ray Player

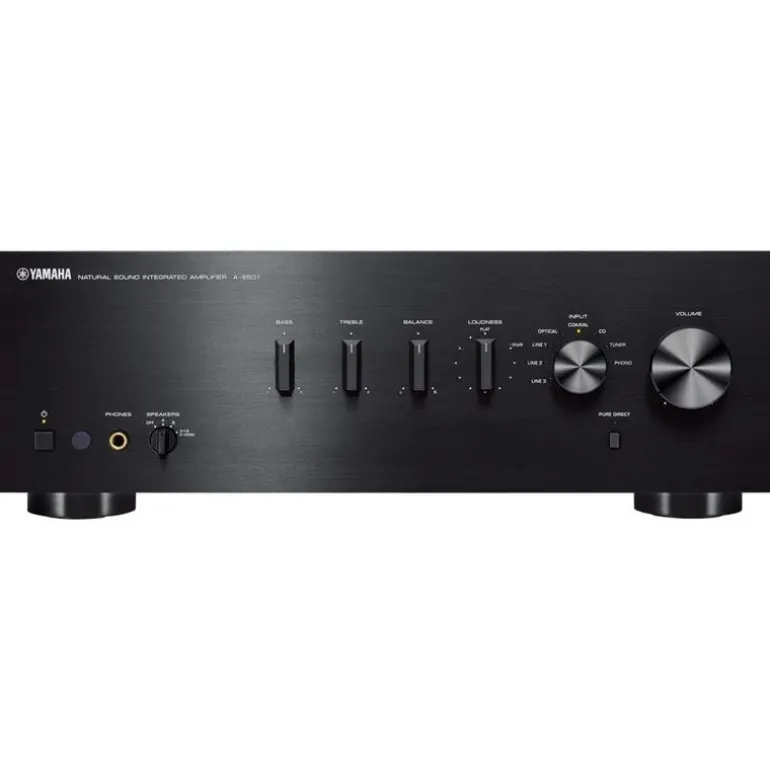

• Simple yet sophisticated design (aluminium front panel and knobs)
• Auto Power Standby

Technocal

• Minimum RMS Output Power (8 ohms, 20 Hz-20 kHz)85 W + 85 W (0.019% THD)
• Maximum Power (4 ohms, 1kHz, 0.7% THD, for Europe)120 W + 120 W
• High Dynamic Power/Channel (8/6/4/2 ohms)130/150/185/220 W
• Damping Factor240
• Frequency Response10 Hz-100 kHz +/-1.0 dB
• Total Harmonic Distortion (CD to Sp Out, 20 Hz-20 kHz)0.019% (50 W/8 ohms)
• Signal-to-Noise Ratio (CD)99dB (input shorted, 200 mV)
• Audio In / Out8 / 2
• Digital InputYes (optical / coaxial)
• Subwoofer OutYes
• DC outYes
• Pure DirectYes
• ToP-ARTYes
• Standby Power Consumption0.5W
• Power Management (Auto Power Standby)Yes
• Dimensions (W x H x D)435 x 151 x 387 mm; 17-1/8” x 6” x 15-1/4”
• Weight10.3 kg; 22.7 lbs.
