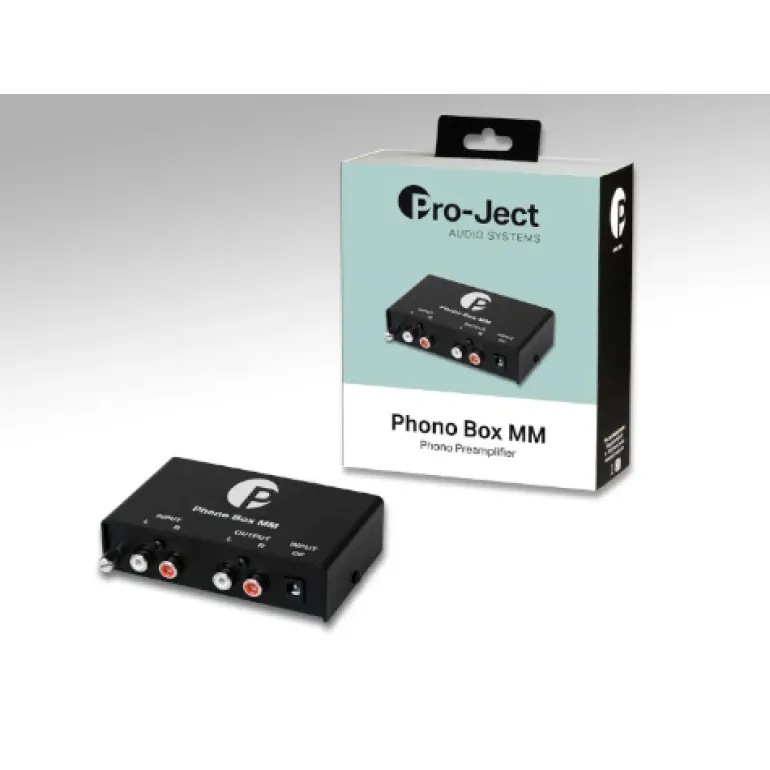

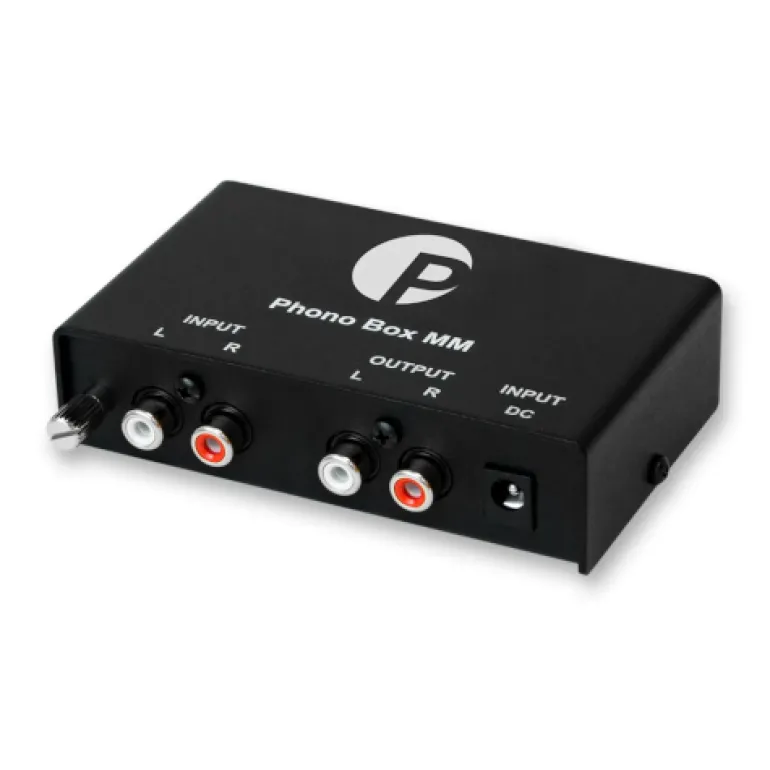

Pro Ject Phono Box MM Pre-amplifier Black

Good sound from sound technology

Today there aren’t many amplifiers that have a specific phono cartridge input. Phono Box MM is an ideal phono preamplifier for these HiFi systems. Phono Box MM accepts both MM and high-output MC cartridges to offers an audiophile a music experience at an entry-level price. Advanced circuitry keeps noise and distortion at a surprisingly low level. The metal case shielding and an outboard DC power supply leave no risk for external interference and damage. Because of its small casing, Phono Box MM can be placed near the turntable. Input and output sockets are gold-plated to maintain the quality of when it was first purchased. Phono Box MM can be connected easily to a line-input (AUX etc) of your amplifier.

Features

Amplification and RIAA equalisation for MM and High-Output MC cartridges

Metal case shields the electronics from vibrational and electromagnetic interference

Special low-noise ICs used

Optimal channel separation through dual-mono circuitry

Gold plated RCA connection sockets

DC power supply (< 1 watt standby power)

Small size allows installation close to record player

Technical Specifications

Input impedance47 kOhm / 120 pF

Gain 40 dB

Output voltage 500 mV / 1 kHz at 5 mV /1 kHz

Noise floor 88 dB (A weighted)

THD <0,04%

Input 1 pair RCA/phono sockets

Line-level output 1 pair RCA/phono sockets

Outboard power supply 18 V / 500 mA DC, suitable for your country’s mains supply

Power consumption 20 mA DC

Dimensions W x H x D 107 x 30 x 75 mm

Weight280g without power supply
