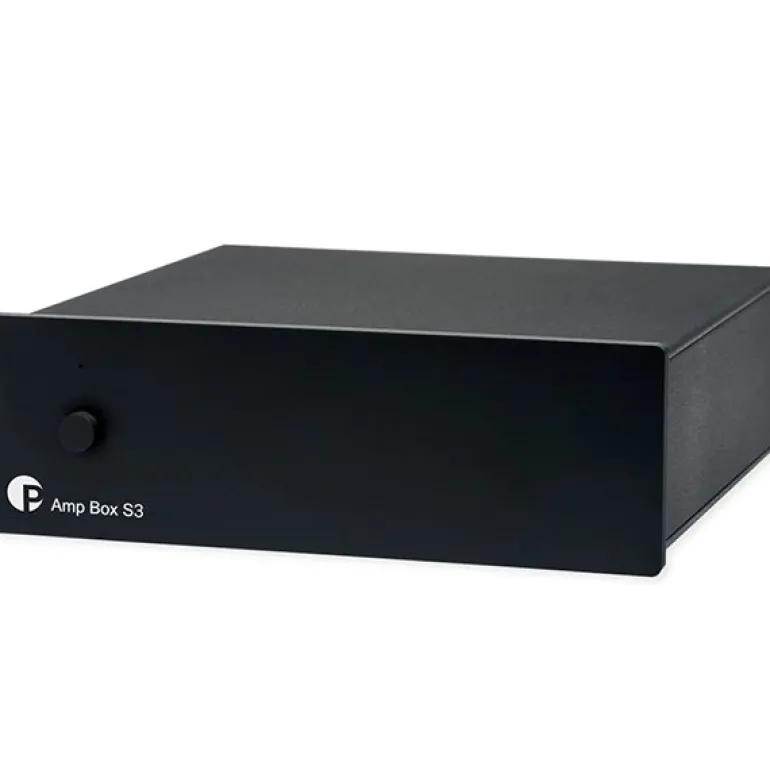

Pro-Ject Amp Box S3 Micro audiophile stereo power amplifier Black

Efficient, audiophile & made in Europe!

The new Amp Box S3 offers one stereo RCA input and delivers powerful and room-filling sound to every loudspeaker. The new PCB concept & sophisticated topology achieves less distortion and a better signal to noise ratio.
Designed to match the sound characteristics of a tube amplifier as close as possible. Amp Box S3 brings you a rich and musical sound with an analogue touch of warmth into your living room.
It is also the perfect solution for your desktop nearfield monitor speakers due to its size and superior spacious sound stage.

Application examples:
HiFi Amplifier for 10-15 m2 rooms
Audiophile desktop nearfield monitor amp
Streamer power amp upgrade
Multiroom power amp solution
Home cinema power amp upgrade
In-wall or celing speaker amp

The new Amp Box S3 is designed and produced in Europe and is available in a black & silver finish.

Features

NEW PCB concept & sophisticated topology
NEW lower distortion & better SNR
Ultra compact & audiophile
Advanced amplifier module
Metal casing protects against vibration and interference
Made in Europe

Technical Specifications
Power output    2 x 23 W / 40 W at 8 ohms / 4 ohms
Peak power    2 x 50 W at 4 ohms
Frequency response    20Hz – 20kHz (- 0,7dB / 4 ohms)
Channel separation    > -68 dB @ 20kHz
Signal-to-noise ratio    87dBV (100dBV-‚A‘ weighted)/4ohms
THD    < 0,02% @ 10W / 4 ohms
Gain    31 dB

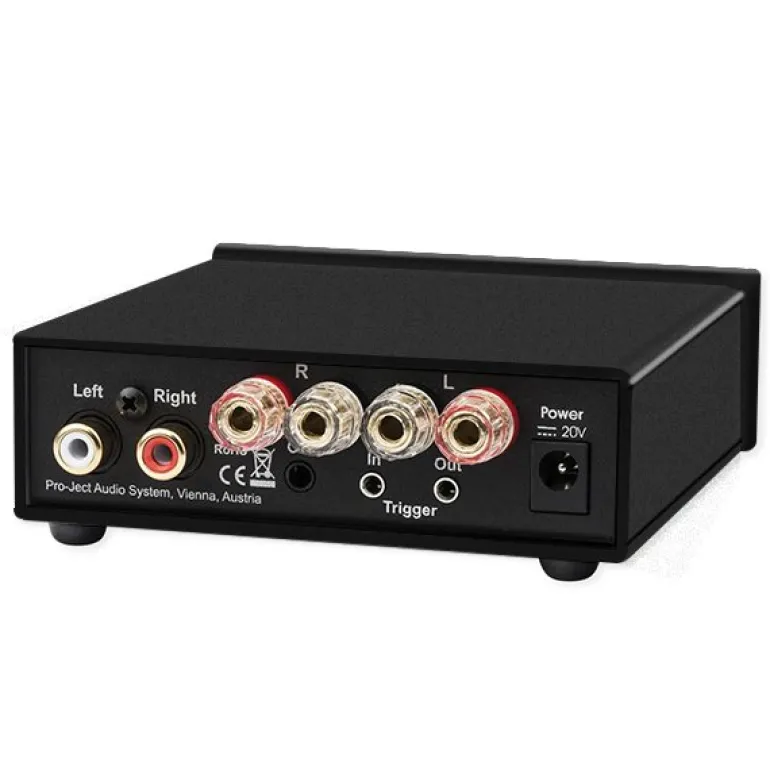

Input     1 pair RCA sockets
Input impedance    25 kohm
Speaker sockets    4mm Ø Banana, spades. pins or bare wire
Trigger 12V DC    In&Out, 2-pole jack socket Ø 2,5mm
Power supply    20V/3A DC (universal power supply)
Dimensions W x H x D    103 x 36 x 118mm
Weight    385g without power supply
