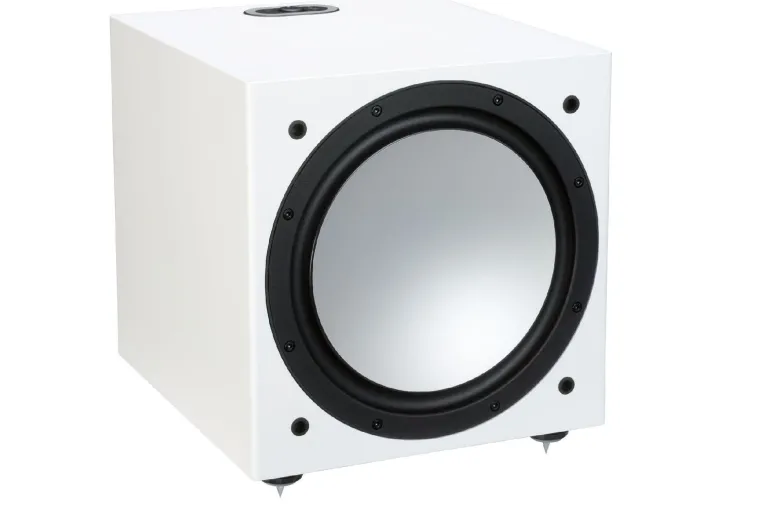

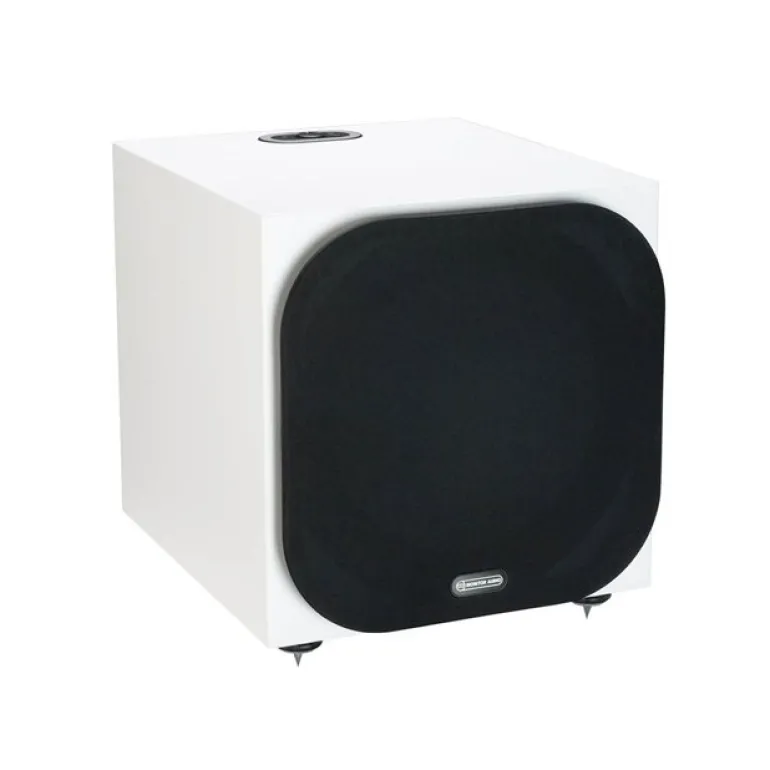

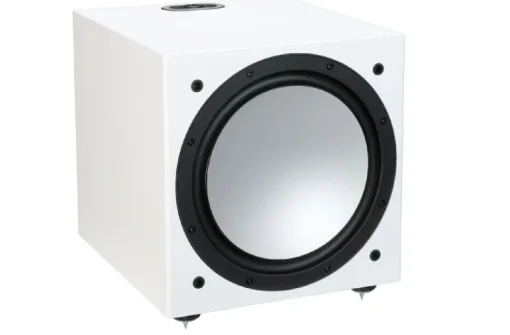

The Monitor Audio Silver Series Subwoofer delivers seismic bass right down to 22 Hz using a powerful, long throw 12 inch driver.



Features



Ultra Long Throw 12 inch driver featuring dished C-CAM Cone

Triple Suspension for ultimate linearity ensuring control at hhigh power and excursions

Oversized Black Anodised 3 inch voice coil which provides high power handling nad low distortion

Powerful 500 W RMS Class D Amplifier with switching power supply that provides instant delivery of high current when required

DSP processing with all control features and crossover performed digitally

USB for firmware updates

Three Preset EQ mode settings



With the Silver W-12’s over specified driver assembly that employs a hugely powerful magnet system and massive voice coil to deliver immense power from the compact sealed cabinet. With the heavy duty diecast basket not only does it hold the massive system rigidly together but also assists the thermal sinking to keep the driver cool.



From the Silver W-12 Subwoofer to Monitor Audio specified a 500-watt Class-D Amplifier and power supply module from highly regarded amplifier specialist Hypex. This provides an incredible headroom and utilises advanced switch mode power conversion techniques. With Automatic Position Correction system, the APC is a complete in house development designed to be automatically correct for room modes. It uses a microphone and test tones to calculate detrimental room modes and correct frequency response. By optimising it for the room and position.



At the heart of the Silver W-12 lies the sophisticated 32 bit micro controller, monitoring performance thousands of times per second. Ensuring the system can deliver the best possible bass. It will never become over driven or distorted even at maximum power.



Specifications



Lower Frequency Limit

20 Hz (Typical IEC room)



Upper Frequency Limit

40 – 120 Hz variable



Low Pass Filter Alignment

Active 4th order 24 db/octave



Amplifier Output

500 W continuous



Amplifier Classification

Class-D amplifier with switched-mode power supply (SMPSU)



Bass EQ Profiles

1: Movie

2: Music

3: Impact



Phase Control

0 & 180 degrees



Auto Sensing

Line Level >2 mV



Input Level Requirements

Standby after 20 minutes if no signal sensed



Drive Unit Complement

1 x 12″ C-CAM subwoofer driver featuring triple suspension and 3″ long throw voice coil



Trigger Input

5 – 12 V via 3.5 mm mono mini-jack socket



Cabinet Dimensions (Excluding Grille and Terminals (H x W x D))

340 x 340 x 380 mm (133/8″ x 133/8″ x 1415/16”)



Dimensions (Including Grille, Amp and Feet)

370 x 340 x 410 mm (149/16″ x 133/8″ x 161/8”)



Mains Input Voltage

110 – 120 Vac /

220 – 240 Vac 50/60 Hz (Electronically Auto selected)



Power Consumption

400 W / 0.5 W in Standby (ErP approved)



Weight (unpacked)

20.1 kg (44 lb 5 oz)



Sold As

Single Unit
