Monitor Audio CP-IW260X Creator Series In-Wall Speaker Single

Monitor Audio CP-IW260X Creator Series In-Wall Speaker Single

Introducing the Monitor Audio CP-IW260X, a cutting-edge speaker featuring the latest advancements in drive-unit technology. Crafted in compact three-way, five-driver configurations and enclosed in acoustically-sealed cast-polymer back boxes, these speakers ensure structural integrity for exceptional sound quality in any setting. The closed-box design not only preserves sound quality but also minimizes sound transmission between walls and floors, reducing the need for additional sound isolation in the wall cavity.

Experience high efficiency and remarkable power handling, delivering class-leading sound pressure levels with dynamic wide-band response, deep bass extension, and low distortion typically associated with specialized floor-standing speakers. The CP-IW260X is engineered for Controlled Performance, guaranteeing optimal sound quality wherever it is installed.

For unparalleled system design flexibility in high-end custom installations, the CP-IW260X features separate bi-wire terminations for the bass/mid and tweeter networks. Additionally, audiophiles and custom installers can fine-tune the in-room response with HF and midrange attenuation options, along with a boundary compensation switch.

Key Features:

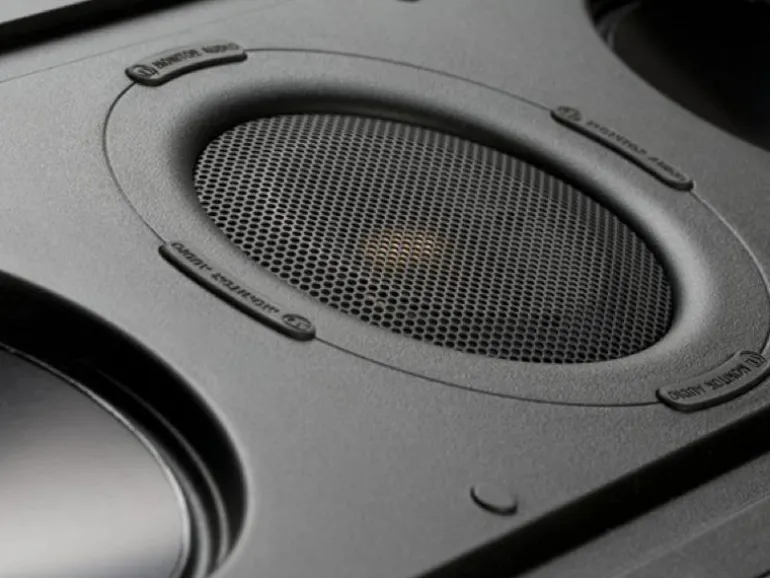

• Dual 165mm C-CAM bass drivers.
• Dual 102mm C-CAM® mid-range drivers with underhung voice coil technology.
• 25mm C-CAM Gold Dome tweeter.

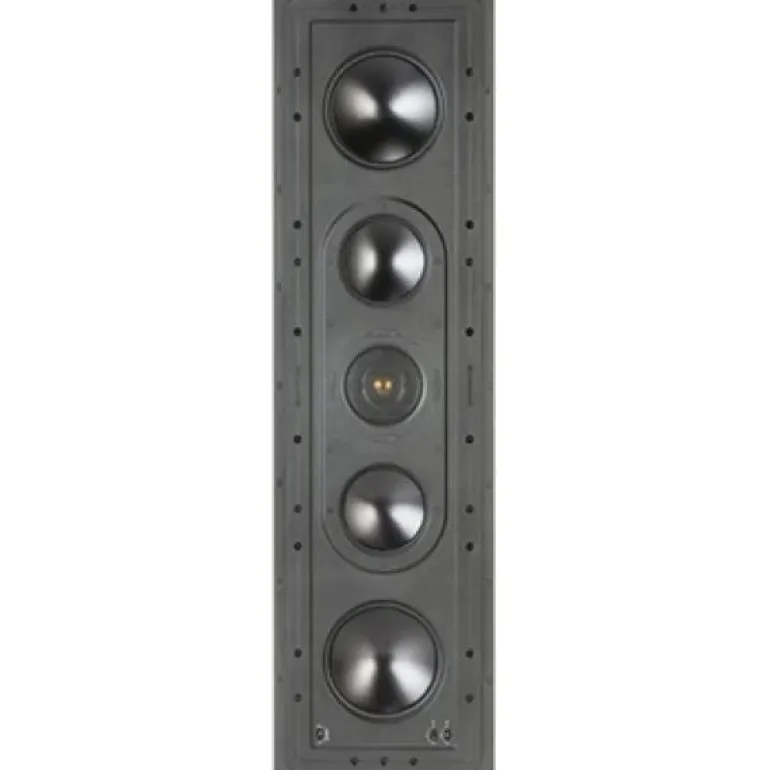

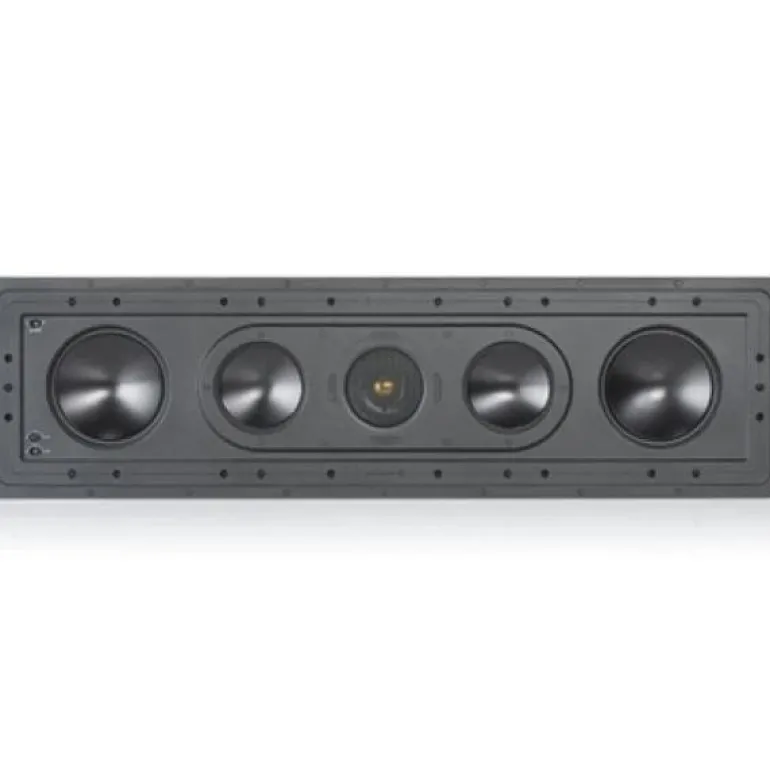

• Versatile portrait or landscape orientation for seamless integration into any space.

Elevate your audio experience with the Monitor Audio CP-IW260X, where cutting-edge technology meets sophisticated design for unparalleled sound performance.

General Information

• Enclosure Type: Closed
• Fire Rating: Unspecified
• Guarantee Period (Months): 60
• Output: Mono
• Power Type: Passive

Application

• Home Cinema
• Stereo Music

Appearance

• Visible Colour: White
• Visible Shape: Rectangular

Dimensions

• Cutout Dimensions (mm): 880 x 230
• Mounting Depth (mm): 96
• Overall Depth (mm): 102
• Overall Dimensions (mm): 907×257

Detailed Specifications

• Compatible Amplifier (Watts RMS): 60 – 150
• Frequency range (Hz): 50 – 30000
• Nominal Impedance (Ω): 6
• Max Power High (Watts): 150
• Sensitivity (dB): 89
• Sound Pressure (dB): 113.8

Driver Information

• Bass: 2
• Biggest Driver Size (mm): 102
• Mid: 2
• Tweeter: 1
