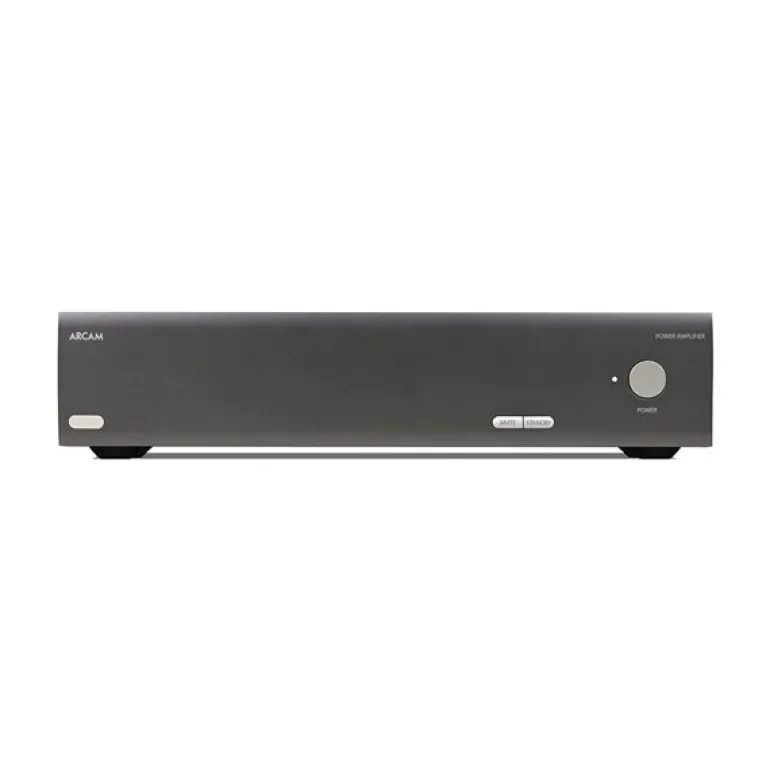

Arcam PA410 Class AB Power Amplifier

With an impressive 70W per channel, the PA410 is a high-performance power amplifier that delivers 4 channels of efficient Class AB amplification.

Featuring the best-in-class components including a toroidal based power supply the PA410 masters the reproduction of music for an unmatched level of sound quality and clarity.

Features

4 Channel Power Amplifier
4 x 70W Class AB amplification (all channels driven)
Toroidal transformer

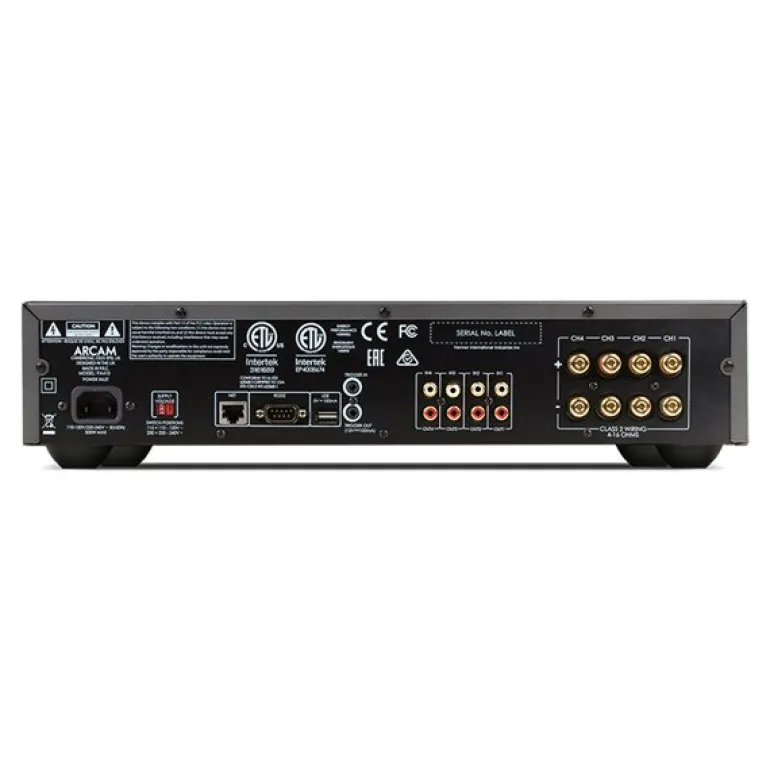

Ethernet, RS232 control
Continuous power output at 0.2% THD per channel
Four channels driven, 4Ω / 8Ω, 20Hz – 20kHz 70W / 50W
Two channels driven, 4Ω / 8Ω, 20Hz – 20kHz 90W / 60W
Harmonic distortion, 80% power, 8Ω at 1kHz 0.003%

Inputs

Input sensitivity 50W / 8Ω 600mV RMS Signal/Noise ratio (A-wtd) 50W / 8Ω 105dB Input impedance 10kΩ Frequency response 20 – 20kHz +/-0.05dB

General

Mains voltage 110–120V or 220–240V, 50–60Hz
Power consumption (maximum) 700W
Power consumption (idle, typical) 90W (Thermal dissipation approx. 340 BTU/hour)
Power consumption (standby) <0.5W
Dimensions W x H x D (including feet, control knob and speaker terminals) 433x325x105mm
Weight (net) 10kg
Weight (packed) 11.5kg
